Installing a PVC strip curtain takes five steps: measure the doorway, choose the right strip width and overlap, fit the mounting rail to a solid surface, hang each strip with the correct overlap, and trim the strips so they clear the floor by 25–50 mm. Most single-door installations take 30–60 minutes with a drill, tape measure, and utility knife. Getting the overlap and strip grade right matters more than speed. An under-overlapped curtain leaks air and lets in pests, while an oversized strip in a small doorway makes staff avoid using it altogether.
Definition: What is Strip Curtain?
A Strip Curtain is a doorway barrier made of overlapping vertical PVC strips hung from a metal rail, used to control temperature, dust, insects, and noise while still letting people and equipment pass through. Unlike a solid door, the strips flex apart on contact and reseal automatically. They’re standard fittings in cold storage, food processing, warehouses, and any opening that needs to stay passable for constant traffic.
What Tools and Materials Do You Need Before Installing Strip Curtains?
You need six things on hand before you start: a tape measure, a power drill, a spirit level, a utility knife or heavy shears, wall fixings suited to your surface, and the curtain kit itself.
- Tape measure and spirit level – for accurate doorway measurements
- Power drill with masonry or wood bits – matched to your wall material
- Utility knife or heavy-duty shears – for trimming strips to length
- Wall plugs, coach bolts, or self-tapping screws – rated for the rail’s weight
- PVC Strip Curtain Kit – rail plus strips in your chosen width and grade
For food or pharma areas, confirm the strips are food-grade PVC first – standard commercial-grade strips aren’t cleared for direct food contact.
How Do You Measure a Doorway for PVC Strip Curtains?
Measure the doorway width and height at three points each, then add 50–100 mm on each side so the rail overlaps the frame. Doorframes are rarely square, so checking width at three points catches any taper before you order strips that don’t fit. Measure height from the rail’s intended mounting point, not the top of the frame, since the rail sits above the opening.
- Width: measure top, middle, and bottom; use the widest figure
- Height: measure from planned rail height to floor level
- Add 50–100 mm of rail overlaps on each side of the opening
- Note any slope in the floor – it affects trim length

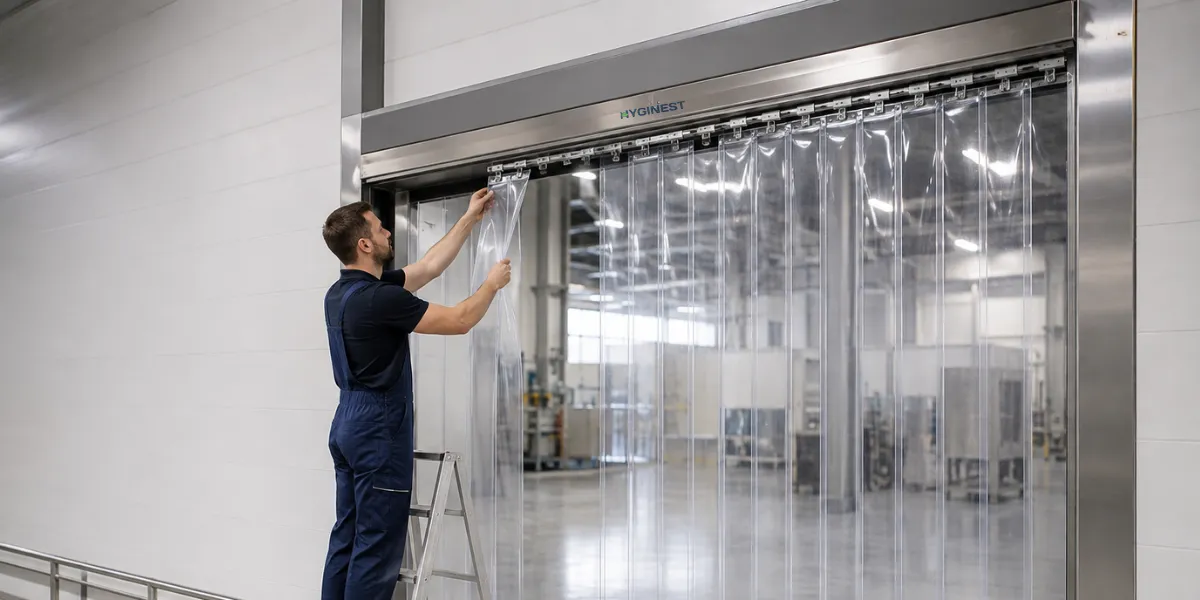

How Do You Install PVC Strip Curtains Step by Step?
Installing strip curtains follows five steps: mount the rail, fix it to the wall, attach the strips with the correct overlap, trim to length, and let the strips settle before final adjustment.
- Mark and drill the rail position – use the spirit level to draw a horizontal line at your measured height, then mark drill points every 300–400 mm along a solid section of wall or frame.
- Fix the rail – insert wall plugs or bolts and screw the rail flush to the surface, anchoring into the wall rather than a hollow doorframe wherever possible.
- Attach the strip clamps – most kits, including Hyginest’s freezer-grade strip curtains, ship with pre-fitted mounting plates that clip straight onto the rail without extra hardware.
- Hang each strip – starting from one edge, clip strips onto the rail one at a time, leaving the gap that matches your chosen overlap percentage.
- Trim and settle – trim strips so they clear the floor by 25–50 mm, then leave them for a few hours. PVC ships coiled and needed time to hang flat.
Mount the rail into the wall on either side of the frame, not into the frame itself. I’ve replaced dozens of curtains where the door frame pulled loose under the strips’ weight within a year.
How Much Overlap Do Strip Curtain Panels Need?
Strip curtains need a minimum 30% overlap for general use, rising to 50–67% for high-traffic doors and up to 80% for cold storage and freezer entrances.
Overlap is the amount each strip covers its neighbour – more overlap means a tighter seal but more resistance to walk through. According to PVC manufacturer Copely’s installation guide (Feb 2025), general-use strip curtains need a minimum 30% overlap to maintain an effective seal; freezer doors run much higher.
| Environment | Recommended Overlap | Why |
|---|---|---|
| Pedestrian-only doors | 30–35% | Balances seal with ease of movement |
| Mixed foot & trolley traffic | 50% | Common middle ground for warehouses |
| Forklift & heavy traffic | 30–50%, double layer | Reduces catch risk on machinery |
| Cold storage & freezers | 67–80% | Maximizes the temperature seal |
Which PVC Strip Curtain Type Fits Your Space?
The right type depends on your priority: clear PVC for visibility, ribbed strips for high-traffic doors, tinted anti-insect strips for food areas, and freezer-grade strips for cold storage.
| Type | Best For | Key Trait |
|---|---|---|
| Clear / transparent | General warehouses, retail | Full visibility through the doorway |
| Ribbed | High-traffic doors | Extra rigidity resists flapping |
| Anti-insect (tinted) | Food processing, kitchens | Tinted to deter insects |
| Freezer / polar grade | Cold storage, sub-zero rooms | Stays flexible in low temperatures |
| Magnetic | Frequent trolley or forklift traffic | Reseals itself after each pass-through |
If your doorway sees constant trolley or pallet-truck traffic, magnetic strip curtains reseal on their own after every pass, which keeps the seal consistent through a full shift. Hyginest stocks all five types ready for dispatch across India.
Order about 10% more strips than your calculation says you need. Trimming waste and edge wear mean you’ll want spares on hand without placing a second order.
What Mistakes Should You Avoid When Installing Strip Curtains?
The most common installation mistakes are mounting the rail into a hollow door frame, skipping the overlap calculation, and installing non-food-grade PVC in food-handling areas.
- Mounting into the frame, not the wall – frames sag under strip weight over months
- Guessing the overlap – under-sealed curtains lose real temperature-control benefit
- Using standard PVC in food zones – needs PVC cleared for food contact, not decorative-grade strip
- Leaving strips too long – trailing ends catch on trolley wheels and forklift tyres
- Ignoring strip replacement – one torn strip breaks the seal for the whole curtain
In the U.S., food-contact PVC needs to appear among the substances authorized under Title 21 of the Code of Federal Regulations for uses in contact with foods, according to the FDA’s own inventory of food contact substances. It’s worth confirming a supplier’s certification before installing strip curtains near open food.
How Do You Maintain Strip Curtains After Installation?
Wipe strips down with warm water and a mild detergent on a weekly basis, and replace any strip that’s torn, clouded, or bent out of shape.
Strip curtains need little upkeep beyond routine cleaning and periodic strip swaps. Each strip clips on individually, so you can replace one damaged panel without removing the whole curtain. In doorways with heavy airflow loss, pairing a strip curtain with an air curtain cuts temperature exchange further; Hyginest‘s after-sales team stocks replacement strips so a swap never means a full re-order.
Never trim a strip while it’s still hanging on the rail – unclip it first. A slipped blade on a hanging strip is one of the most common install-day injuries our technicians see.
Frequently Asked Questions
How much does it cost to install PVC strip curtains?
Material costs typically run ₹150–₹400 per strip, with a standard single door needing 8–15 strips. Labor is minimal since kits are built for a two-person, sub-hour install with basic tools.
Can I install strip curtains without a rail?
No – strips need a rail or track to hang from and reseal correctly after each pass-through. Screwing strips directly to a frame skips that flexibility and voids most manufacturer warranties.
How long do PVC strip curtains last?
Well-maintained strips typically last 2–4 years in moderate traffic, less under constant forklift or freezer use. Because strips clip on individually, replacing worn ones extends the curtain’s working life well beyond the original set.
Do strip curtains need planning permission or building approval?
Standard PVC strip curtains count as fixtures, not structural changes, so most commercial installs don’t need approval. Food or pharma facilities should still confirm the PVC grade meets local hygiene and fire-safety codes.
What’s the difference between strip curtains and plastic swing doors?
Strip curtains use several overlapping strips that flex individually, while swing doors use one or two rigid panels on hinges. Strips handle constant, high-volume traffic better since each one reseals on its own.
Can strip curtains be installed outdoors?
Yes – UV-stabilized PVC is made for exterior loading docks, but standard clear strips yellow and stiffen faster in direct sunlight. Choose a UV-rated grade for any doorway with prolonged sun exposure.
Final Thoughts
Get the measurements, overlap, and mounting surface right, and a strip curtain installation holds up for years with almost no upkeep. As more facilities standardize on food-grade and freezer-rated PVC through 2026, choosing certified strips upfront is becoming the default rather than an upgrade.
